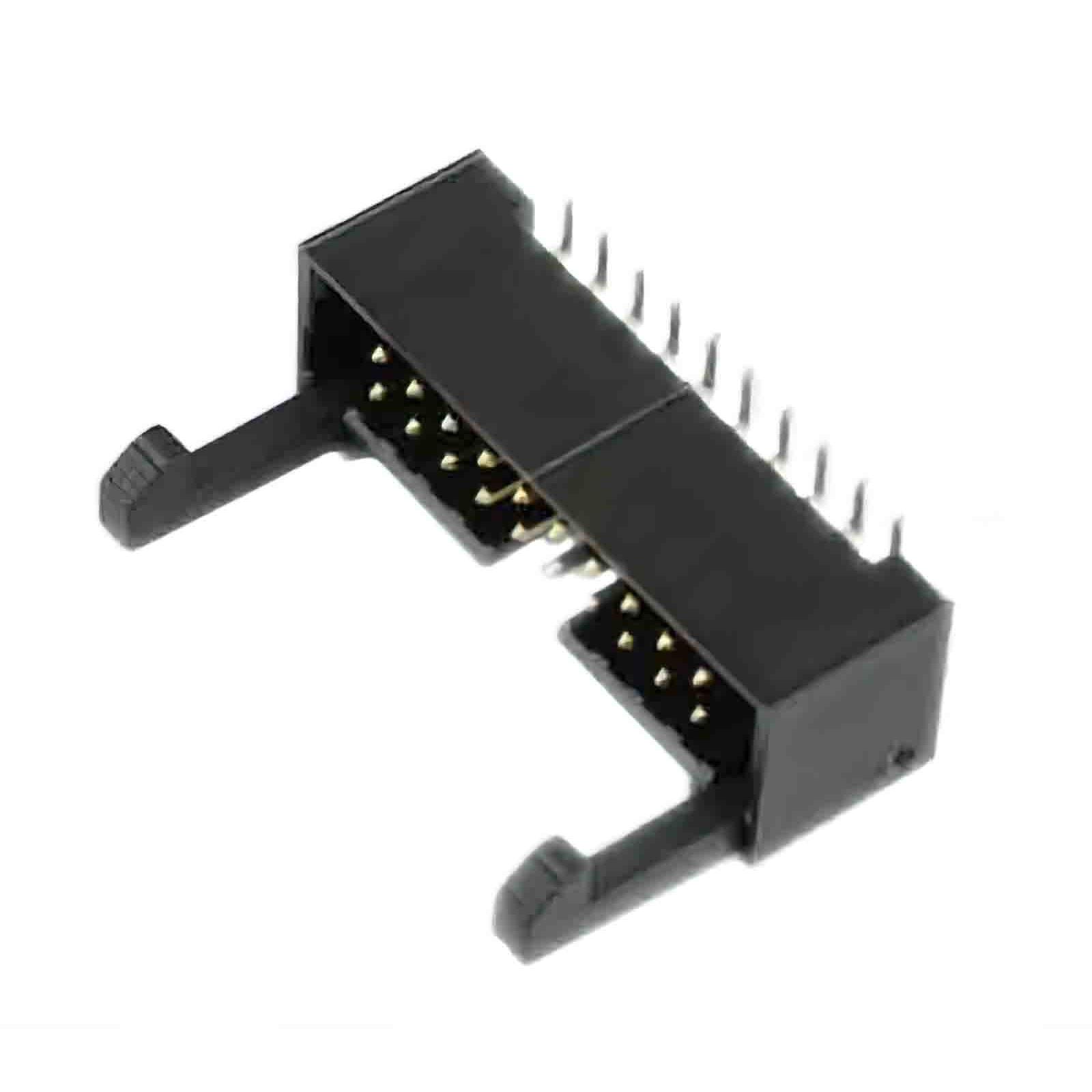

Same model may have multiple batches, images only for reference.

AWHW-200-34ST12
Manufacturer No:	AWHW-200-34ST12
Manufacturer:	ASSMANN WSW Components
SUVSysrem No:	AWHW-200-34ST12
Package:	Tube
Datasheet:	AWHW-200-34ST12
Description:	Connector Header Surface Mount 34 position 0.079" (2.00mm)
Request Free Samples

ESD
ISO9001
ISO13485
ISO14001
ISO45001

AWHW-200-34ST12 information

Product Attributes	Attribute Value
Category	Connectors, Interconnects
Manufacturer	ASSMANN WSW Components
Package	Tube
Description	Connector Header Surface Mount 34 position 0.079" (2.00mm)
Features	Polarizing Key
Connector Type	Header
Current Rating (Amps)	1A
Mounting Type	Surface Mount
Number of Positions	34
Number of Rows	2
Style	Board to Board
Operating Temperature	-40°C ~ 105°C
Contact Type	Male Pin
Fastening Type	Latch Lock/Eject Hooks, Long
Number of Positions Loaded	All
Termination	Solder
Material Flammability Rating	UL94 V-0
Contact Material	Brass
Insulation Color	Black
Pitch - Mating	0.079" (2.00mm)
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Shape	Square
Insulation Height	0.807" (20.50mm)
Shrouding	Shrouded - 4 Wall
Insulation Material	Polyamide (PA9T), Nylon 9T, Glass Filled
Row Spacing - Mating	0.079" (2.00mm)
Contact Length - Mating	0.142" (3.60mm)
