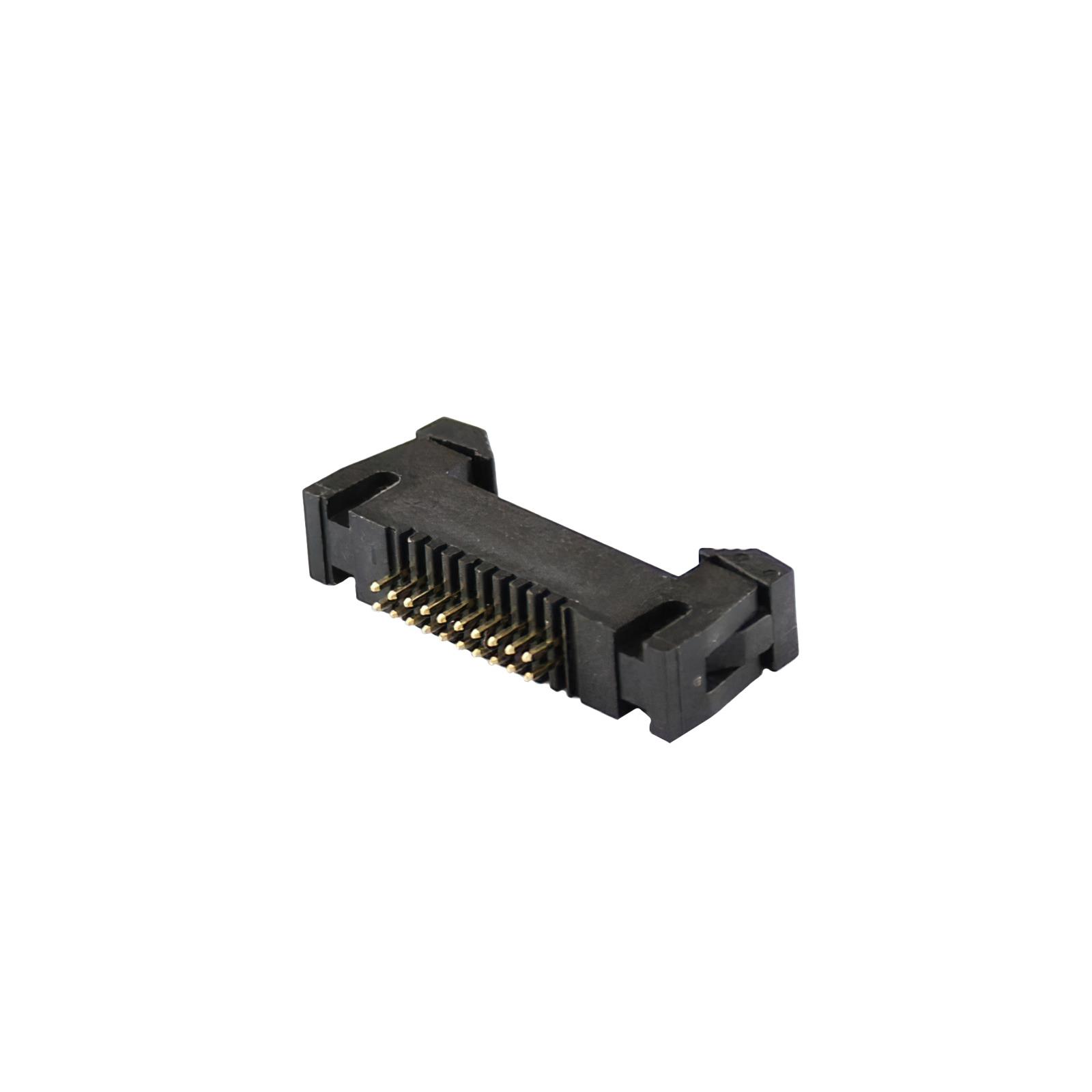

Same model may have multiple batches, images only for reference.

AWH1 06G-0222
Manufacturer No:	AWH1 06G-0222
Manufacturer:	ASSMANN WSW Components
SUVSysrem No:	AWH1 06G-0222
Package:	Tube
Datasheet:	AWH1 06G-0222
Description:	Connector Header Through Hole 6 position 0.050" (1.27mm)
Request Free Samples

ESD
ISO9001
ISO13485
ISO14001
ISO45001

AWH1 06G-0222 information

Product Attributes	Attribute Value
Category	Connectors, Interconnects
Manufacturer	ASSMANN WSW Components
Package	Tube
Description	Connector Header Through Hole 6 position 0.050" (1.27mm)
Features	Keying Slot
Connector Type	Header
Voltage Rating	500VAC/DC
Current Rating (Amps)	1A
Mounting Type	Through Hole
Number of Positions	6
Number of Rows	2
Style	Board to Cable/Wire
Operating Temperature	-40°C ~ 105°C
Contact Type	Male Pin
Fastening Type	Latch Lock/Eject Hooks
Number of Positions Loaded	All
Termination	Solder
Material Flammability Rating	UL94 V-0
Contact Material	Brass
Pitch - Mating	0.050" (1.27mm)
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	100.0µin (2.54µm)
Contact Shape	Square
Contact Length - Post	0.094" (2.40mm)
Insulation Height	0.433" (11.00mm)
Shrouding	Shrouded - 4 Wall
Insulation Material	Polyamide (PA6T), Nylon 6T
Row Spacing - Mating	0.050" (1.27mm)
Contact Length - Mating	0.100" (2.54mm)
