AWD 127/06/Z-T ASSMANN WSW Components Connectors, Interconnects distributor and supplier

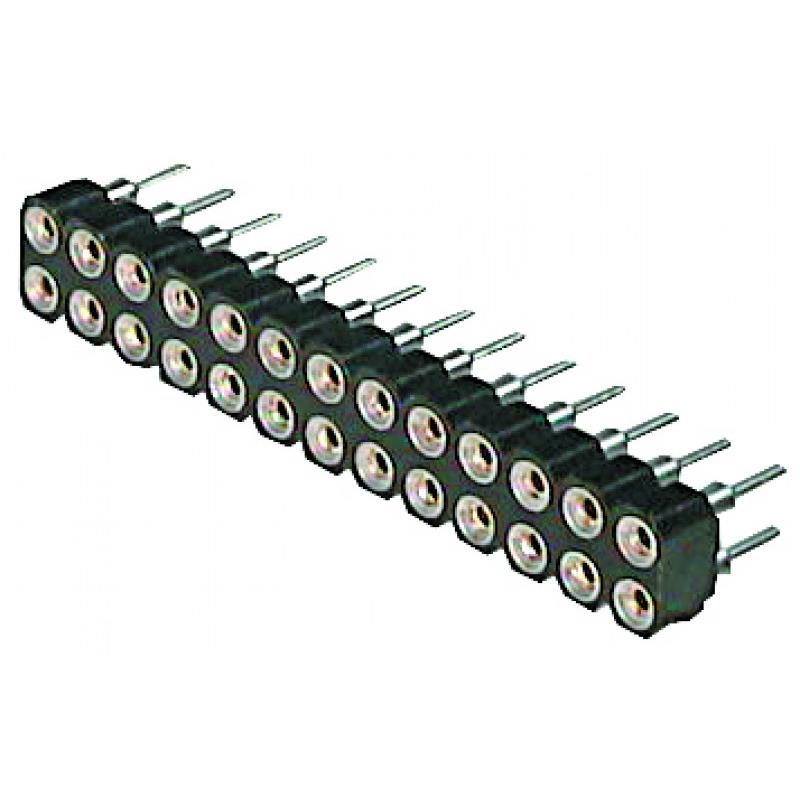

Same model may have multiple batches, images only for reference.

AWD 127/06/Z-T
Manufacturer No:	AWD 127/06/Z-T
Manufacturer:	ASSMANN WSW Components
SUVSysrem No:	AWD 127/06/Z-T
Package:	Bag
Datasheet:	AWD 127/06/Z-T
Description:	6 Position Header Connector 0.100" (2.54mm) Through Hole Gold
Request Free Samples

ESD
ISO9001
ISO13485
ISO14001
ISO45001

AWD 127/06/Z-T information

Product Attributes	Attribute Value
Category	Connectors, Interconnects
Manufacturer	ASSMANN WSW Components
Package	Bag
Description	6 Position Header Connector 0.100" (2.54mm) Through Hole Gold
Connector Type	Header
Voltage Rating	100VAC, 150VDC
Current Rating (Amps)	3A per Contact
Mounting Type	Through Hole
Number of Positions	6
Style	Board to Board
Operating Temperature	-40°C ~ 105°C
Contact Type	Female Socket
Fastening Type	Push-Pull
Number of Positions Loaded	All
Termination	Solder
Material Flammability Rating	UL94 V-0
Contact Material	Beryllium Copper
Insulation Color	Black
Pitch - Mating	0.100" (2.54mm)
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish - Post	Tin
Contact Finish Thickness - Post	200.0µin (5.08µm)
Contact Shape	Circular
Contact Length - Post	0.110" (2.79mm)
Insulation Height	0.118" (3.00mm)
Insulation Material	Polyphenylene Sulfide (PPS)
Row Spacing - Mating	0.100" (2.54mm)
Number of Rows	2

Package

Step1:
Product
Step2:
Casing drivepipe
Step3:
Anti-static bag
Step4:
Packging boxes
Step5:
bar-code shipping tag

Returning/Warranty

SUV System provides a 365-day after-sales warranty period for all products, please feel free to contact us if you have any questions during this period.
