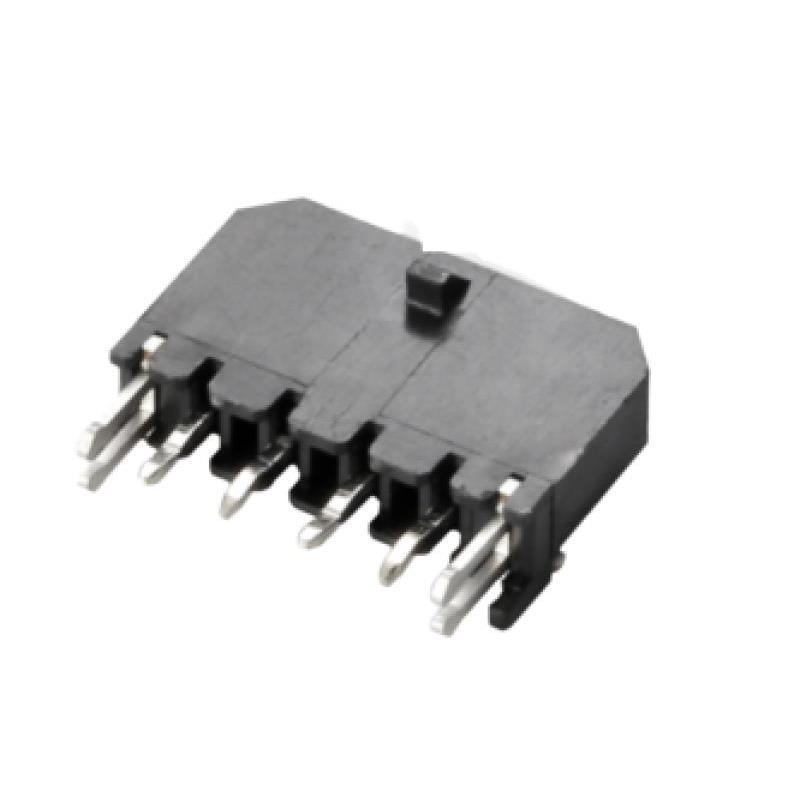

Same model may have multiple batches, images only for reference.

A-WBP-O002EG-04TB01
Manufacturer No:	A-WBP-O002EG-04TB01
Manufacturer:	ASSMANN WSW Components
SUVSysrem No:	A-WBP-O002EG-04TB01
Package:	Bag
Datasheet:	A-WBP-O002EG-04TB01
Description:	Connector Header Through Hole 4 position 0.118" (3.00mm)
Request Free Samples

ESD
ISO9001
ISO13485
ISO14001
ISO45001

A-WBP-O002EG-04TB01 information

Product Attributes	Attribute Value
Category	Connectors, Interconnects
Manufacturer	ASSMANN WSW Components
Package	Bag
Description	Connector Header Through Hole 4 position 0.118" (3.00mm)
Features	Board Guide
Connector Type	Header
Voltage Rating	250VAC
Current Rating (Amps)	5A
Mounting Type	Through Hole
Number of Positions	4
Number of Rows	1
Style	Board to Board
Operating Temperature	-25°C ~ 85°C
Contact Type	Male Pin
Fastening Type	Locking Ramp
Number of Positions Loaded	All
Termination	Kinked Pin, Solder
Material Flammability Rating	UL94 V-0
Contact Material	Brass
Insulation Color	Black
Pitch - Mating	0.118" (3.00mm)
Contact Finish - Mating	Tin
Contact Shape	Square
Contact Length - Post	0.126" (3.20mm)
Insulation Height	0.390" (9.91mm)
Shrouding	Shrouded - 4 Wall
Insulation Material	Liquid Crystal Polymer (LCP)
