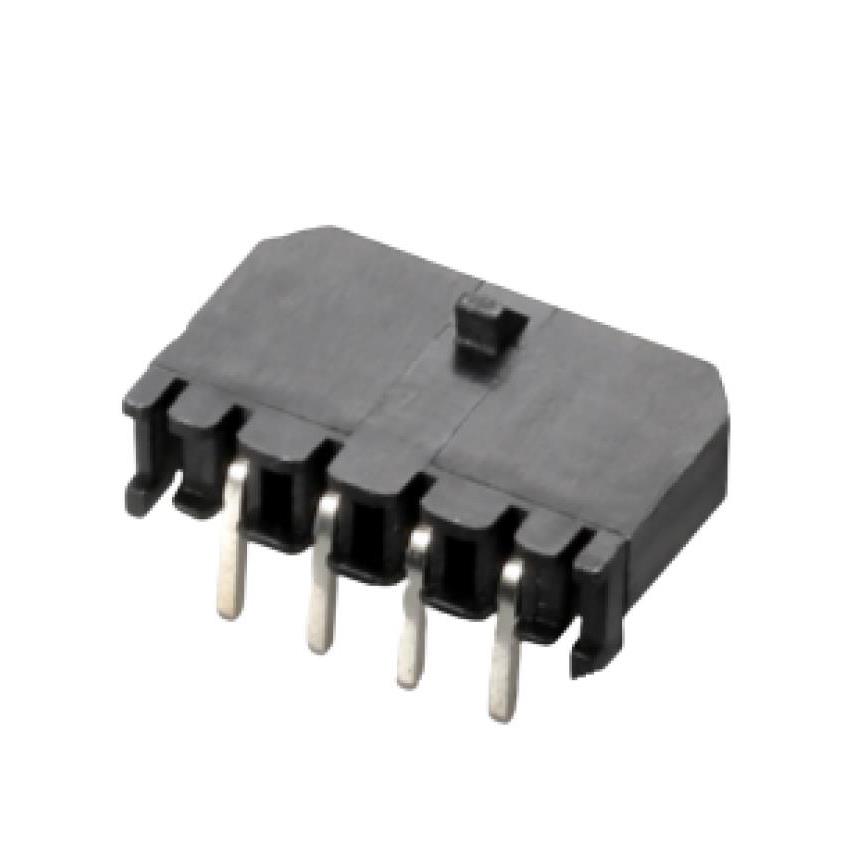

Same model may have multiple batches, images only for reference.

A-WBP-O002EA-10TB01
Manufacturer No:	A-WBP-O002EA-10TB01
Manufacturer:	ASSMANN WSW Components
SUVSysrem No:	A-WBP-O002EA-10TB01
Package:	Bag
Datasheet:	A-WBP-O002EA-10TB01
Description:	Connector Header Through Hole, Right Angle 10 position 0.118" (3.00mm)
Request Free Samples

ESD
ISO9001
ISO13485
ISO14001
ISO45001

A-WBP-O002EA-10TB01 information

Product Attributes	Attribute Value
Category	Connectors, Interconnects
Manufacturer	ASSMANN WSW Components
Package	Bag
Description	Connector Header Through Hole, Right Angle 10 position 0.118" (3.00mm)
Features	Board Guide
Connector Type	Header
Voltage Rating	250VAC
Current Rating (Amps)	5A
Mounting Type	Through Hole, Right Angle
Number of Positions	10
Number of Rows	1
Style	Board to Board
Operating Temperature	-25°C ~ 85°C
Contact Type	Male Pin
Fastening Type	Locking Ramp
Number of Positions Loaded	All
Termination	Solder
Material Flammability Rating	UL94 V-0
Contact Material	Brass
Insulation Color	Black
Pitch - Mating	0.118" (3.00mm)
Contact Finish - Mating	Tin
Contact Shape	Square
Contact Length - Post	0.126" (3.20mm)
Shrouding	Shrouded - 4 Wall
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled
