A-WBP-K002DG-20TB02 ASSMANN WSW Components Connectors, Interconnects distributor and supplier

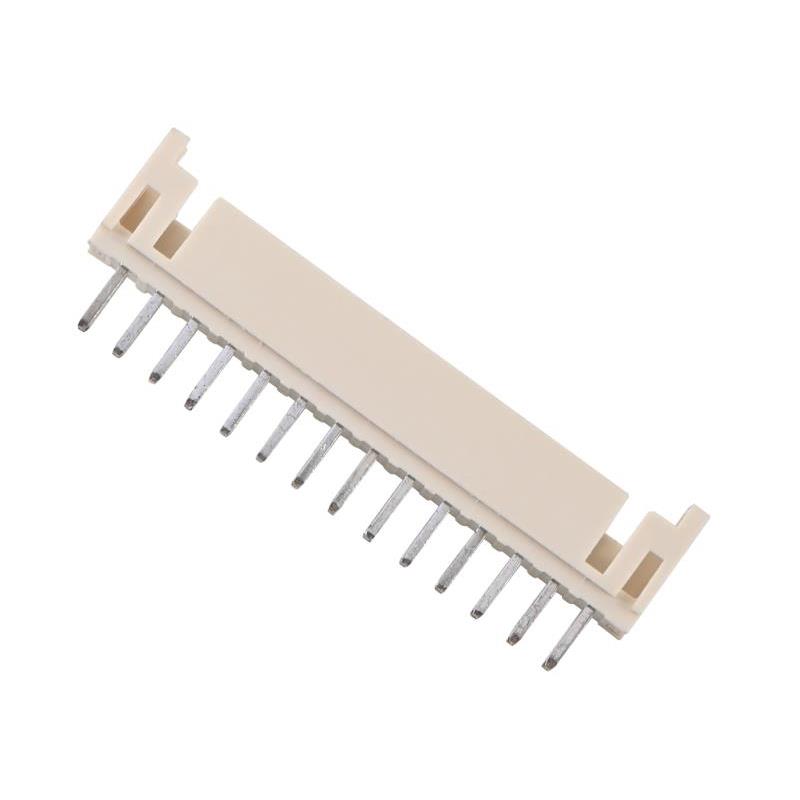

Same model may have multiple batches, images only for reference.

A-WBP-K002DG-20TB02
Manufacturer No:	A-WBP-K002DG-20TB02
Manufacturer:	ASSMANN WSW Components
SUVSysrem No:	A-WBP-K002DG-20TB02
Package:	Bag
Datasheet:	A-WBP-K002DG-20TB02
Description:	Connector Header Through Hole 20 position 0.079" (2.00mm)
Request Free Samples

ESD
ISO9001
ISO13485
ISO14001
ISO45001

A-WBP-K002DG-20TB02 information

Product Attributes	Attribute Value
Category	Connectors, Interconnects
Manufacturer	ASSMANN WSW Components
Package	Bag
Description	Connector Header Through Hole 20 position 0.079" (2.00mm)
Features	Keying Slot
Connector Type	Header
Voltage Rating	250VAC/DC
Current Rating (Amps)	3A
Mounting Type	Through Hole
Number of Positions	20
Number of Rows	2
Style	Board to Cable/Wire
Operating Temperature	-40°C ~ 105°C
Contact Type	Male Pin
Fastening Type	Detent Lock
Number of Positions Loaded	All
Termination	Solder
Material Flammability Rating	UL94 V-0
Contact Material	Brass
Insulation Color	Gray
Pitch - Mating	0.079" (2.00mm)
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Shape	Square
Contact Length - Post	0.118" (3.00mm)
Insulation Height	0.256" (6.50mm)
Shrouding	Shrouded - 4 Wall
Insulation Material	Polyamide (PA66), Nylon 6/6
Row Spacing - Mating	0.079" (2.00mm)
