AW140-EG-Z13D ASSMANN WSW Components Connectors, Interconnects distributor and supplier

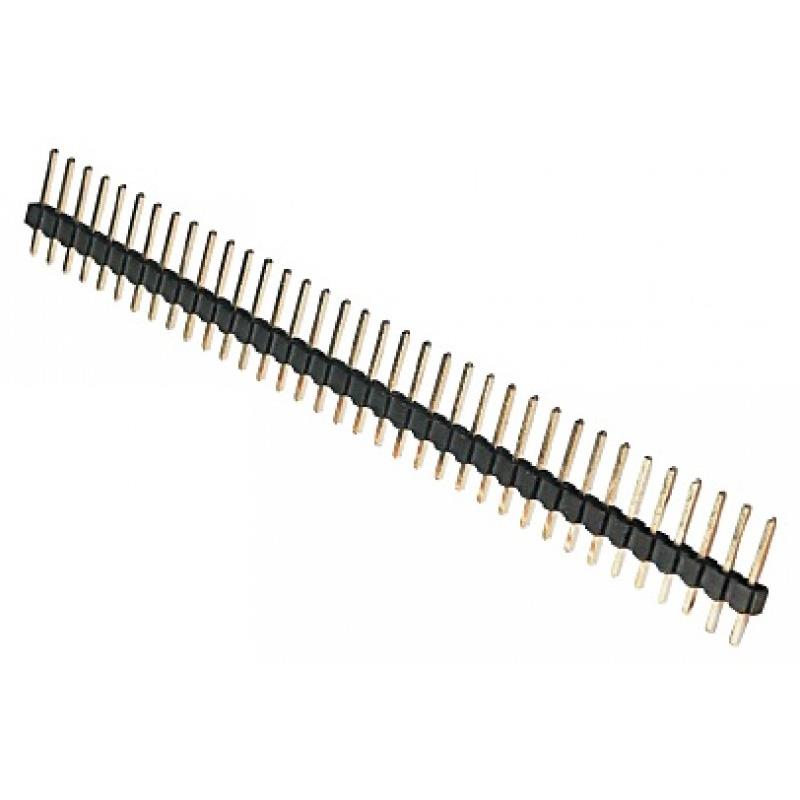

Same model may have multiple batches, images only for reference.

AW140-EG-Z13D
Manufacturer No:	AW140-EG-Z13D
Manufacturer:	ASSMANN WSW Components
SUVSysrem No:	AW140-EG-Z13D
Package:	Bag
Datasheet:	AW140-EG-Z13D
Description:	Connector Header Through Hole 13 position 0.100" (2.54mm)
Request Free Samples

ESD
ISO9001
ISO13485
ISO14001
ISO45001

AW140-EG-Z13D information

Product Attributes	Attribute Value
Category	Connectors, Interconnects
Manufacturer	ASSMANN WSW Components
Package	Bag
Description	Connector Header Through Hole 13 position 0.100" (2.54mm)
Connector Type	Header, Cuttable
Voltage Rating	250VAC/DC
Current Rating (Amps)	3A per Contact
Mounting Type	Through Hole
Number of Positions	13
Number of Rows	1
Style	Board to Board
Operating Temperature	-40°C ~ 105°C
Contact Type	Male Pin
Fastening Type	Push-Pull
Number of Positions Loaded	All
Termination	Solder
Material Flammability Rating	UL94 V-0
Contact Material	Brass
Insulation Color	Black
Pitch - Mating	0.100" (2.54mm)
Contact Finish - Mating	Tin
Contact Shape	Square
Contact Length - Post	0.118" (3.00mm)
Insulation Height	0.098" (2.50mm)
Shrouding	Unshrouded
Overall Contact Length	0.441" (11.20mm)
Insulation Material	Polybutylene Terephthalate (PBT)
Contact Length - Mating	0.224" (5.70mm)

Package

Step1:
Product
Step2:
Casing drivepipe
Step3:
Anti-static bag
Step4:
Packging boxes
Step5:
bar-code shipping tag

Returning/Warranty

SUV System provides a 365-day after-sales warranty period for all products, please feel free to contact us if you have any questions during this period.
