| Product Attributes |
Attribute Value |
| Category |
Connectors, Interconnects |
| Manufacturer |
ASSMANN WSW Components |
| Package |
Tray |
| Description |

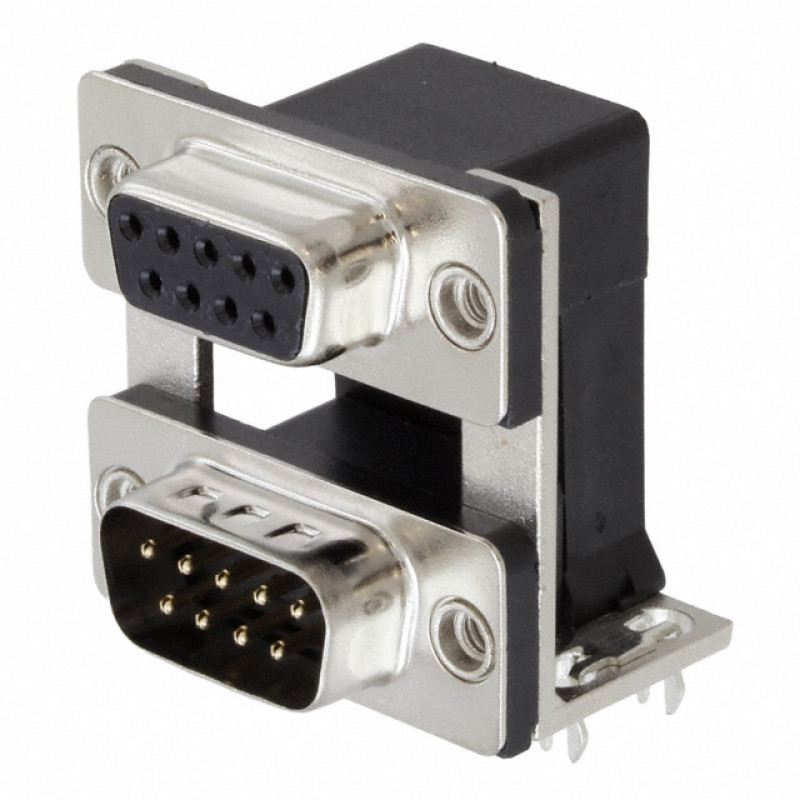

9, 9 Position D-Sub - Stacked Receptacle, Female Socket ; Plug, Male Pins Connector |
| Features | Board Lock, Grounding Indents |
| Connector Type | Receptacle, Female Socket ; Plug, Male Pins |
| Contact Finish | Gold |
| Color | Black |
| Voltage Rating | 250V |
| Current Rating (Amps) | 3A |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 9, 9 |
| Number of Rows | 2, 2 |
| Operating Temperature | -55°C ~ 105°C |
| Contact Type | Signal |
| Flange Feature | Housing/Shell (4-40) |
| Termination | Solder |
| Connector Style | D-Sub - Stacked |
| Contact Finish Thickness | Flash |
| Material Flammability Rating | UL94 V-0 |
| Dielectric Material | Polybutylene Terephthalate (PBT) |
| Shell Material, Finish | Steel, Tin Plated |
| Contact Material | Copper Alloy |
| Shell Size, Connector Layout | 1 (DE, E); 1 (DE, E) |
| Primary Material | Metal |
