A-BL254-EG-Z07D ASSMANN WSW Components Connectors, Interconnects distributor and supplier

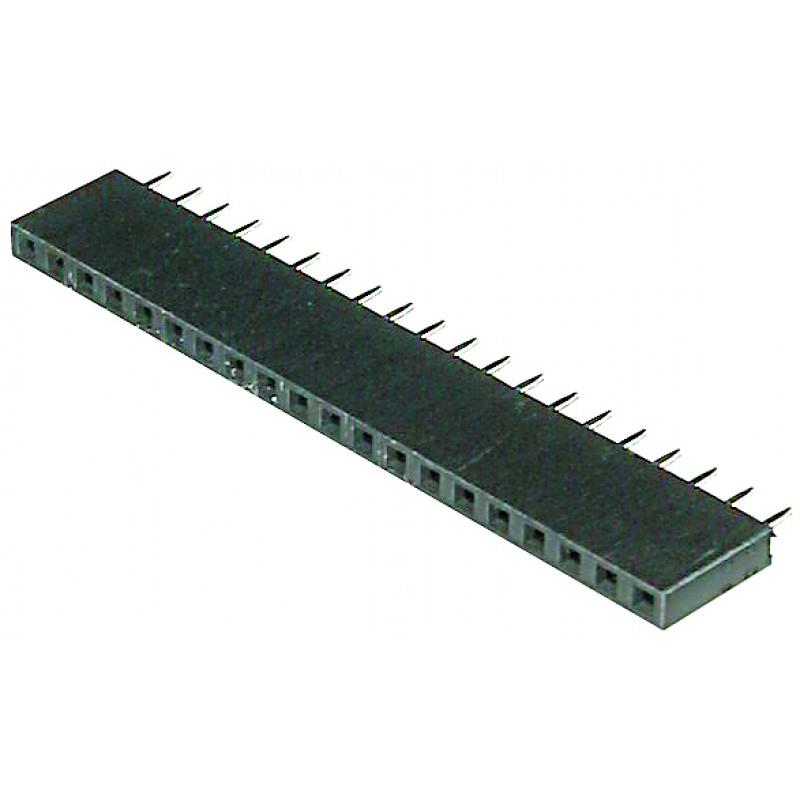

Same model may have multiple batches, images only for reference.

A-BL254-EG-Z07D
Manufacturer No:	A-BL254-EG-Z07D
Manufacturer:	ASSMANN WSW Components
SUVSysrem No:	A-BL254-EG-Z07D
Package:	Tube
Datasheet:	A-BL254-EG-Z07D
Description:	7 Position Header Connector 0.100" (2.54mm) Through Hole Tin
Request Free Samples

ESD
ISO9001
ISO13485
ISO14001
ISO45001

A-BL254-EG-Z07D information

Product Attributes	Attribute Value
Category	Connectors, Interconnects
Manufacturer	ASSMANN WSW Components
Package	Tube
Description	7 Position Header Connector 0.100" (2.54mm) Through Hole Tin
Connector Type	Header
Current Rating (Amps)	3A per Contact
Mounting Type	Through Hole
Number of Positions	7
Style	Board to Board
Operating Temperature	-40°C ~ 105°C
Contact Type	Forked
Fastening Type	Push-Pull
Number of Positions Loaded	All
Termination	Solder
Material Flammability Rating	UL94 V-0
Contact Material	Brass
Insulation Color	Black
Pitch - Mating	0.100" (2.54mm)
Contact Finish - Mating	Tin
Contact Shape	Square
Contact Length - Post	0.126" (3.20mm)
Insulation Height	0.335" (8.50mm)
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Number of Rows	1
