AANI-AP-0035 Abracon RF and Wireless distributor and supplier

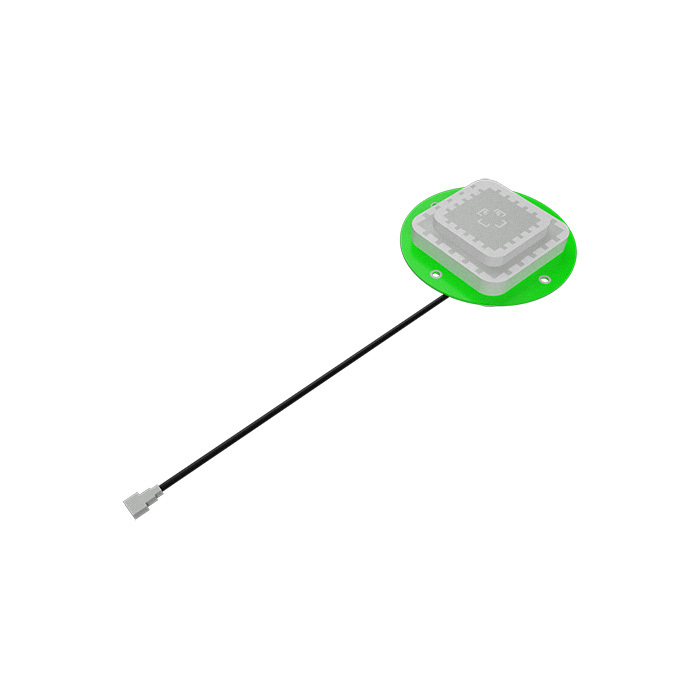

Same model may have multiple batches, images only for reference.

AANI-AP-0035
Manufacturer No:	AANI-AP-0035
Manufacturer:	Abracon
SUVSysrem No:	AANI-AP-0035
Package:	Bulk
Datasheet:	AANI-AP-0035
Description:	1.227GHz, 1.575GHz BeiDou, Galileo, GLONASS, GNSS, GPS Ceramic Patch RF Antenna 1.212GHz ~ 1.242GHz, 1.565GHz ~ 1.585GHz 5dBic, 4.8dBic MMCX Male Through Hole
Request Free Samples

ESD
ISO9001
ISO13485
ISO14001
ISO45001

AANI-AP-0035 information

Product Attributes	Attribute Value
Category	RF and Wireless
Manufacturer	Abracon
Package	Bulk
Description	1.227GHz, 1.575GHz BeiDou, Galileo, GLONASS, GNSS, GPS Ceramic Patch RF Antenna 1.212GHz ~ 1.242GHz, 1.565GHz ~ 1.585GHz 5dBic, 4.8dBic MMCX Male Through Hole
Features	Cable - 120mm, LNA
Mounting Type	Through Hole
Frequency Range	1.212GHz ~ 1.242GHz, 1.565GHz ~ 1.585GHz
Applications	BeiDou, Galileo, GLONASS, GNSS, GPS
Gain	5dBic, 4.8dBic
Termination	MMCX Male
Number of Bands	2
VSWR	2
Antenna Type	Ceramic Patch
Height (Max)	0.657" (16.70mm)
Frequency Group	UHF (1GHz ~ 2GHz)
Frequency (Center/Band)	1.227GHz, 1.575GHz
RF Family/Standard	Navigation
