| Product Attributes |
Attribute Value |
| Category |
Integrated Circuits (ICs) |
| Manufacturer |
3PEAK |
| Package |
Tape & Reel (TR) |
| Description |

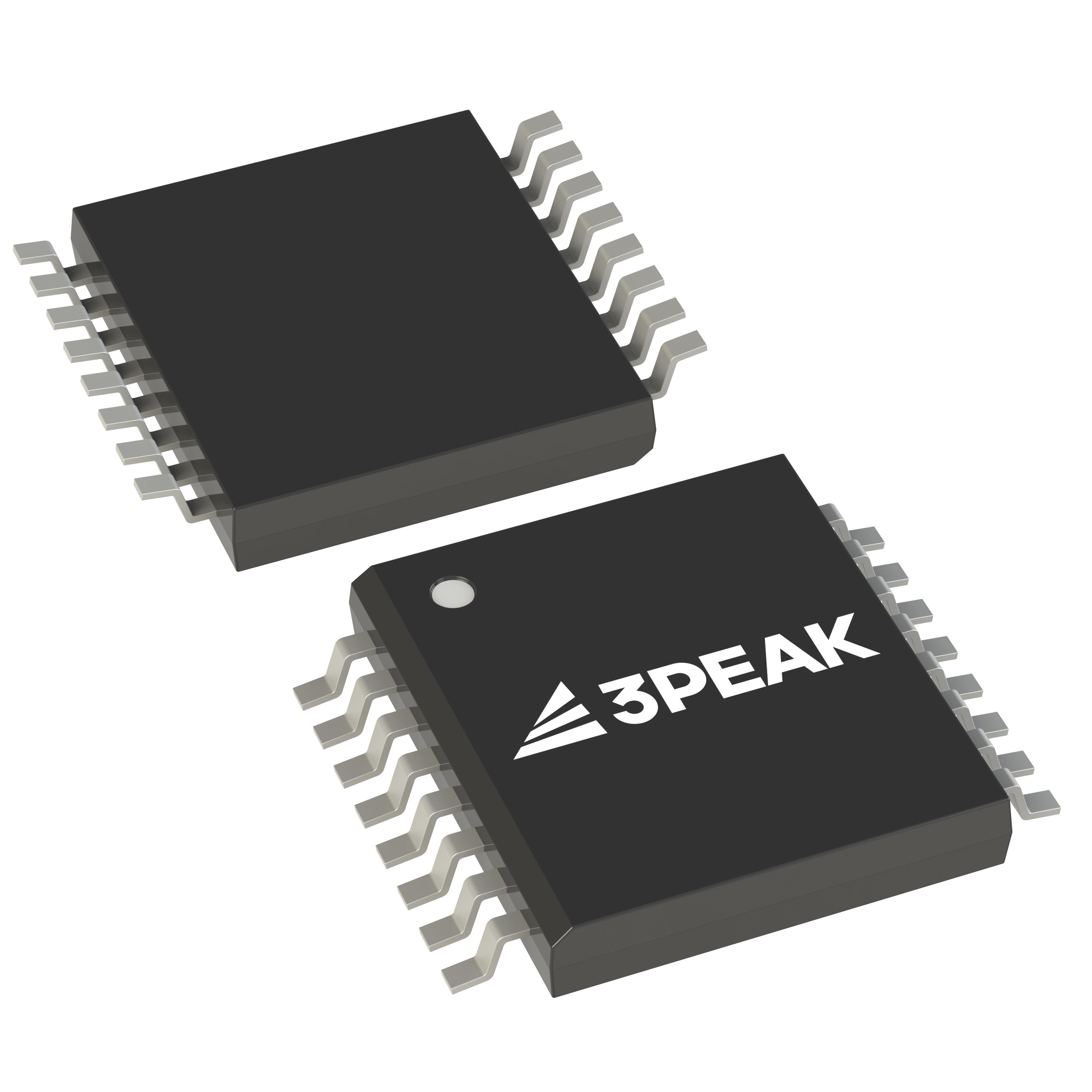

1 Circuit IC Switch 8:1 80Ohm 16-TSSOP |
| Package / Case | 16-TSSOP (0.173", 4.40mm Width) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C |
| On-State Resistance (Max) | 80Ohm |
| -3db Bandwidth | 200MHz |
| Supplier Device Package | 16-TSSOP |
| Voltage - Supply, Single (V+) | 3V ~ 12V |
| Crosstalk | -70dB @ 1MHz |
| Switch Circuit | SP8T - Open |
| Multiplexer/Demultiplexer Circuit | 8:1 |
| Channel-to-Channel Matching (ΔRon) | 15Ohm |
| Switch Time (Ton, Toff) (Max) | 60ns, 50ns |
| Channel Capacitance (CS(off), CD(off)) | 5pF |
| Current - Leakage (IS(off)) (Max) | 1µA |
| Number of Circuits | 1 |
